Other Panels | Frigipan (Pty) Ltd

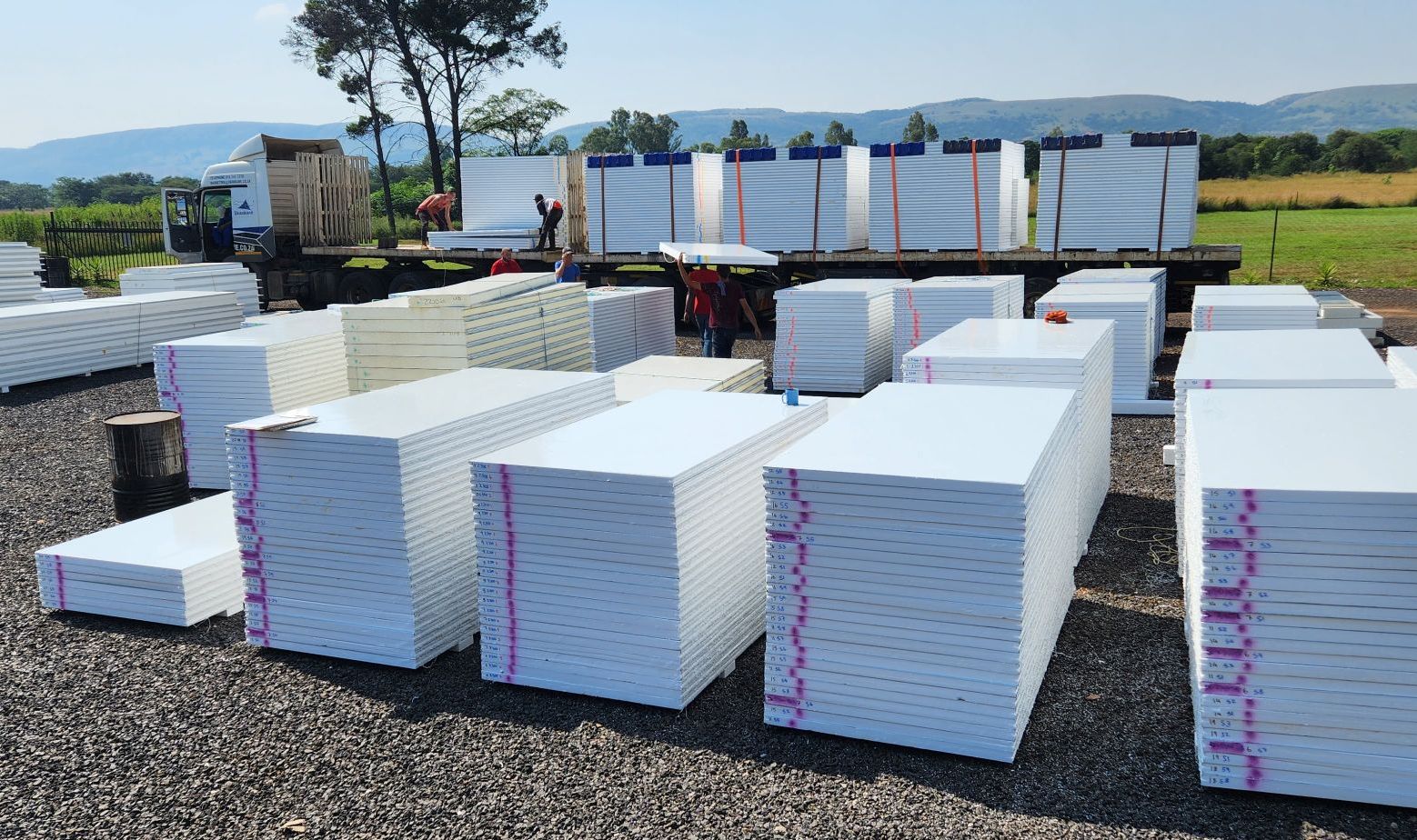

Frigipan insulated panels manufactured and prepared for customers
Specialised panel manufacturer · Pretoria

Other panels.
Engineered for performance.
Built for industry.

Explore Frigipan’s specialised EPS, Rockwool, Engineered EPS, PIC 32 polyurethane, XPE Chipfoam acoustic and insulated IBR roof panel solutions.

Get a Quote → Explore Panel Options ↓
Six specialised panel options Thermal insulation performance Fire and acoustic solutions Custom sizes for project requirements
40–250 mm available insulated panel thicknesses
12–30 kg/m³ EPS density options for project requirements
1000 / 1165 mm panel widths listed in the current specification
12,000 mm maximum listed panel length

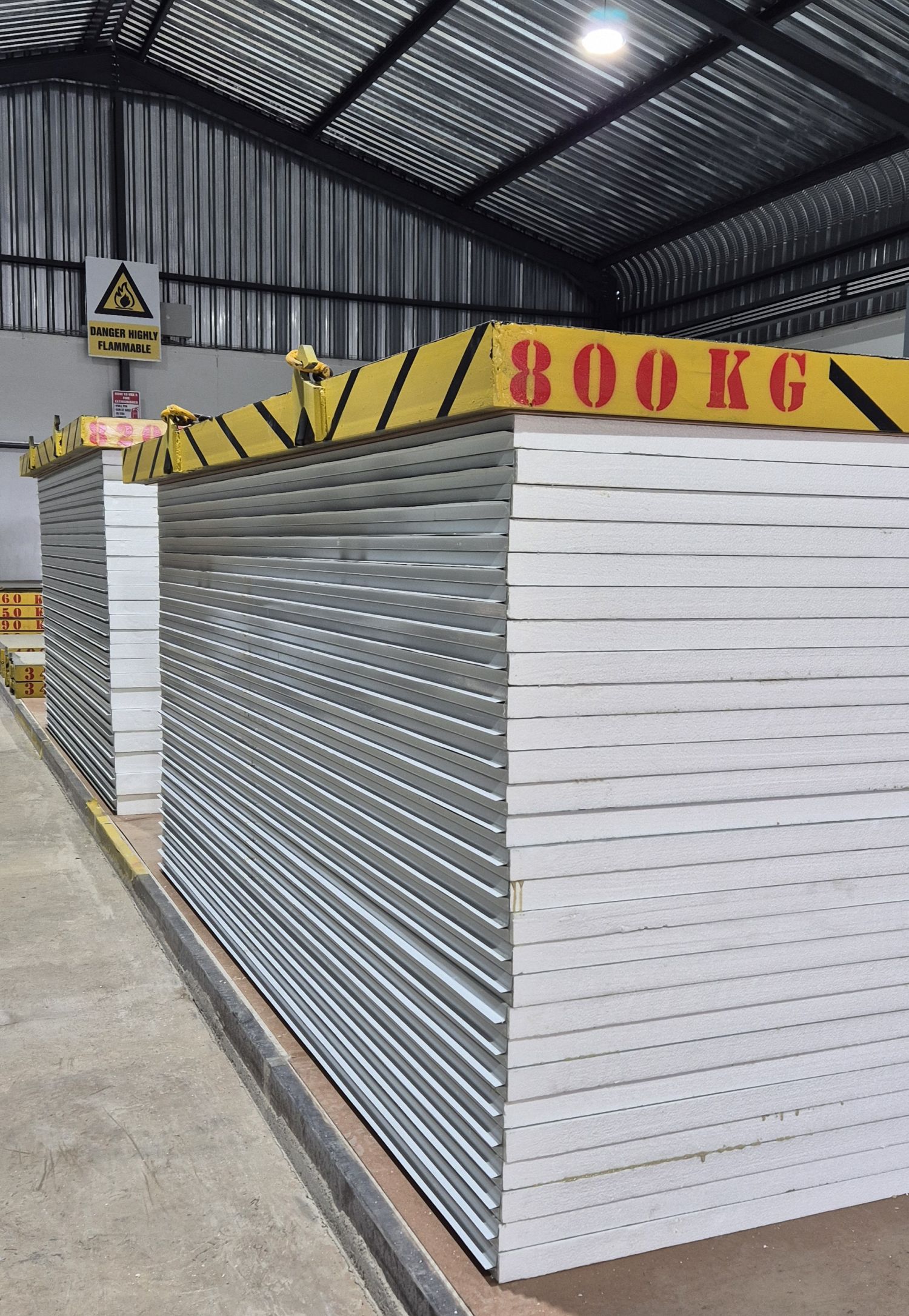

Warehouse with stacked Frigipan insulated panels
Manufactured locallyPretoria, Gauteng
Panels for more than cold rooms

A clean, strong and thermally efficient building system.

Frigipan supplies specialised insulated panel options for cold rooms, freezer rooms, prefab buildings, ceilings, partition walls, insulated trailers and roofing applications. Core and facing options are selected according to the project’s thermal, fire, acoustic and structural requirements.

Energy-efficient thermal insulation
Quick and practical installation
Strong, hygienic and easy-to-clean finish
Custom sizing for project requirements
Doors and cold-room hardware available
Suitable for commercial and industrial use
Applications

Multiple panel systems. Multiple environments.

Frigipan panels are used by refrigeration contractors, food businesses, warehouses and prefab-building projects across Gauteng, South Africa and neighbouring countries.

Large insulated cold storage room
01 / Cold chain

Cold Rooms & Freezer Rooms

 Insulated wall and ceiling installation
02 / Industry

Food Processing & Warehousing

 Glass display doors installed in insulated panel wall
03 / Retail

Supermarkets, Bakeries & Display Areas

 Insulated panels used for prefab building construction
04 / Prefab

Classrooms, Offices & Clinics

 Frigipan factory team handling insulated panels
05 / Heavy duty

Blast Freezers & Ice Plants

 Cold room door hardware fitted to insulated panel door
06 / Complete system

Doors, Hardware & Accessories
Specialised panel range

Choose the panel performance your project needs.

From cost-effective thermal insulation to enhanced fire, acoustic and roofing performance, Frigipan manufactures a panel solution for a wide range of specialised applications.

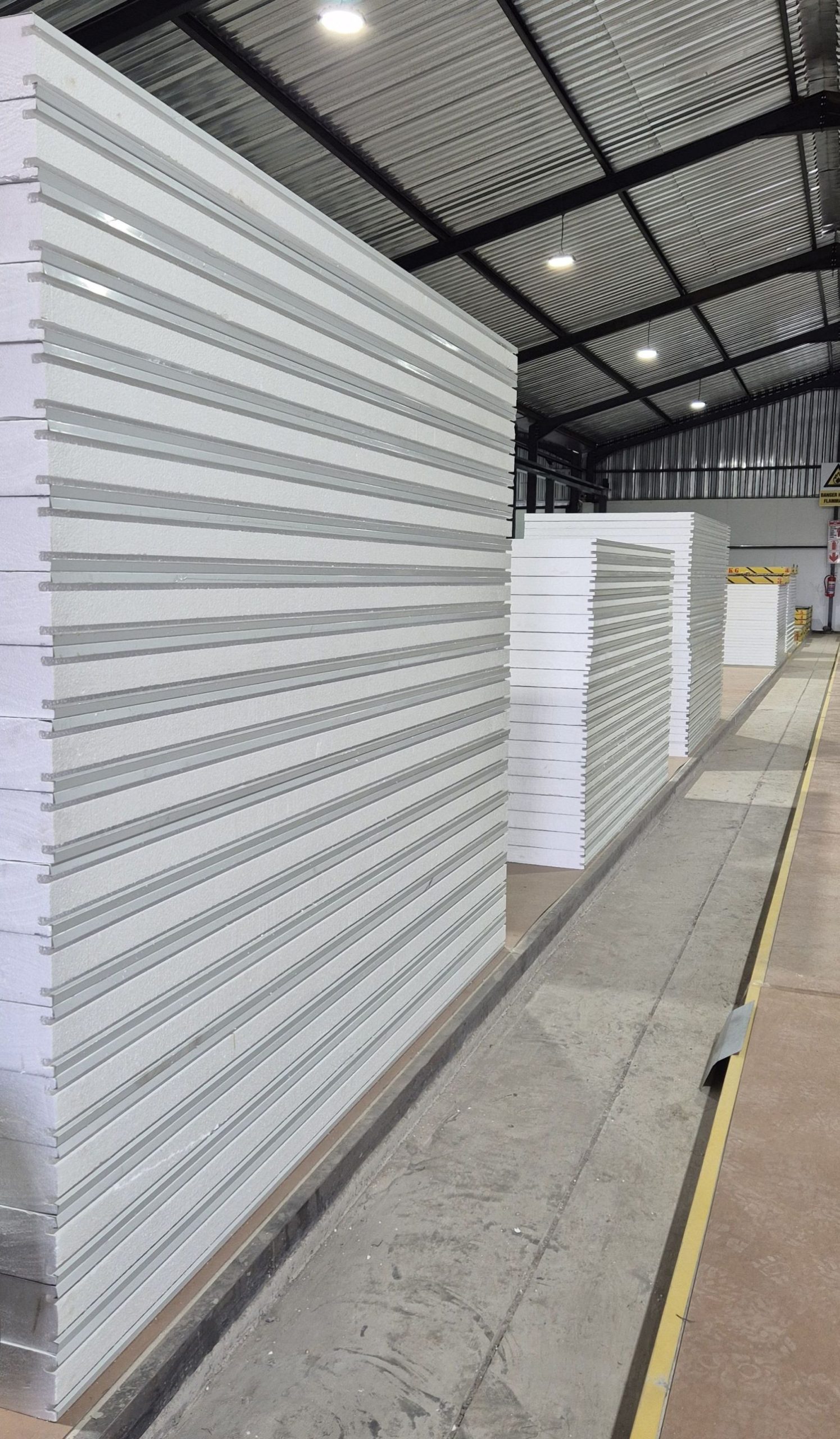

01 Frigipan EPS insulated panels EPS panels manufactured by Frigipan Frigipan insulated panel stock
Reliable insulation

EPS Insulated Panels

Reliable Insulation & Fire-Retardant Performance

Frigipan EPS insulated panels provide a practical and cost-effective solution for reliable thermal insulation, combining excellent insulating properties with a lightweight and durable construction.

The EPS core is manufactured with fire-retardant properties, providing improved fire performance while maintaining the thermal efficiency and versatility required for a wide range of insulated applications.

Key benefits
  • Fire-retardant EPS core
  • Excellent thermal insulation
  • Lightweight and durable
  • Cost-effective solution
  • Cold rooms, freezer rooms and insulated buildings
  • Various thicknesses and customised sizes
Panel & EPS Specifications ↓ Request a Quote →

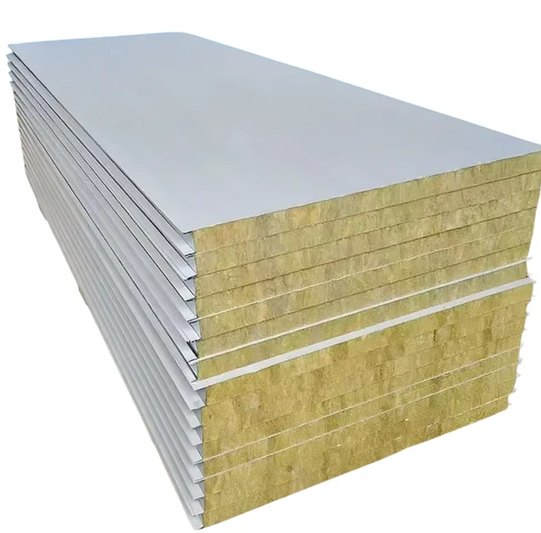

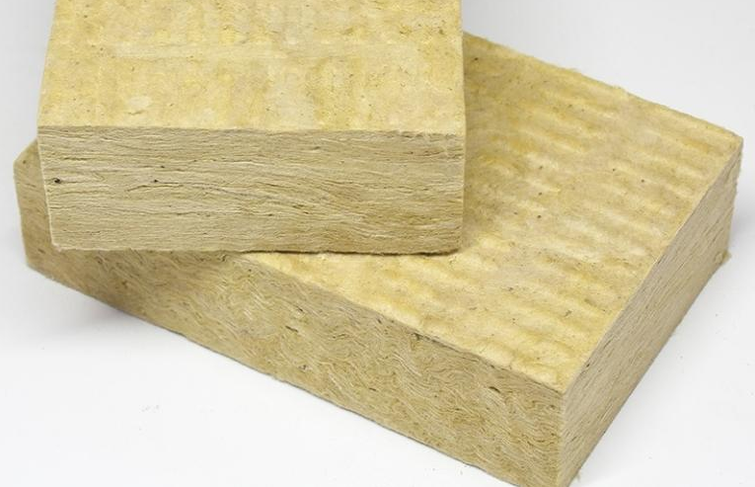

02 Frigipan Rockwool insulated panel Rockwool mineral wool insulation core Rockwool insulated panel construction
Fire and acoustic control

Rockwool Insulated Panels

Fire Resistant, Thermal & Acoustic Insulation

Frigipan Rockwool panels provide a high-performance insulation solution for applications where fire resistance, thermal insulation and acoustic control are important.

The mineral wool core offers excellent resistance to high temperatures while providing effective thermal and sound insulation, making it suitable for industrial, commercial and specialised buildings. The downloadable Rockwool 233 document provides the technical properties of the mineral-wool insulation core used for this panel option.

Key benefits
  • Excellent fire resistance
  • High thermal insulation performance
  • Excellent acoustic insulation
  • Non-combustible mineral wool core
  • Industrial and commercial applications
  • Various thicknesses and customised sizes
Rockwool 233 Core Data ↓ Contact Frigipan →

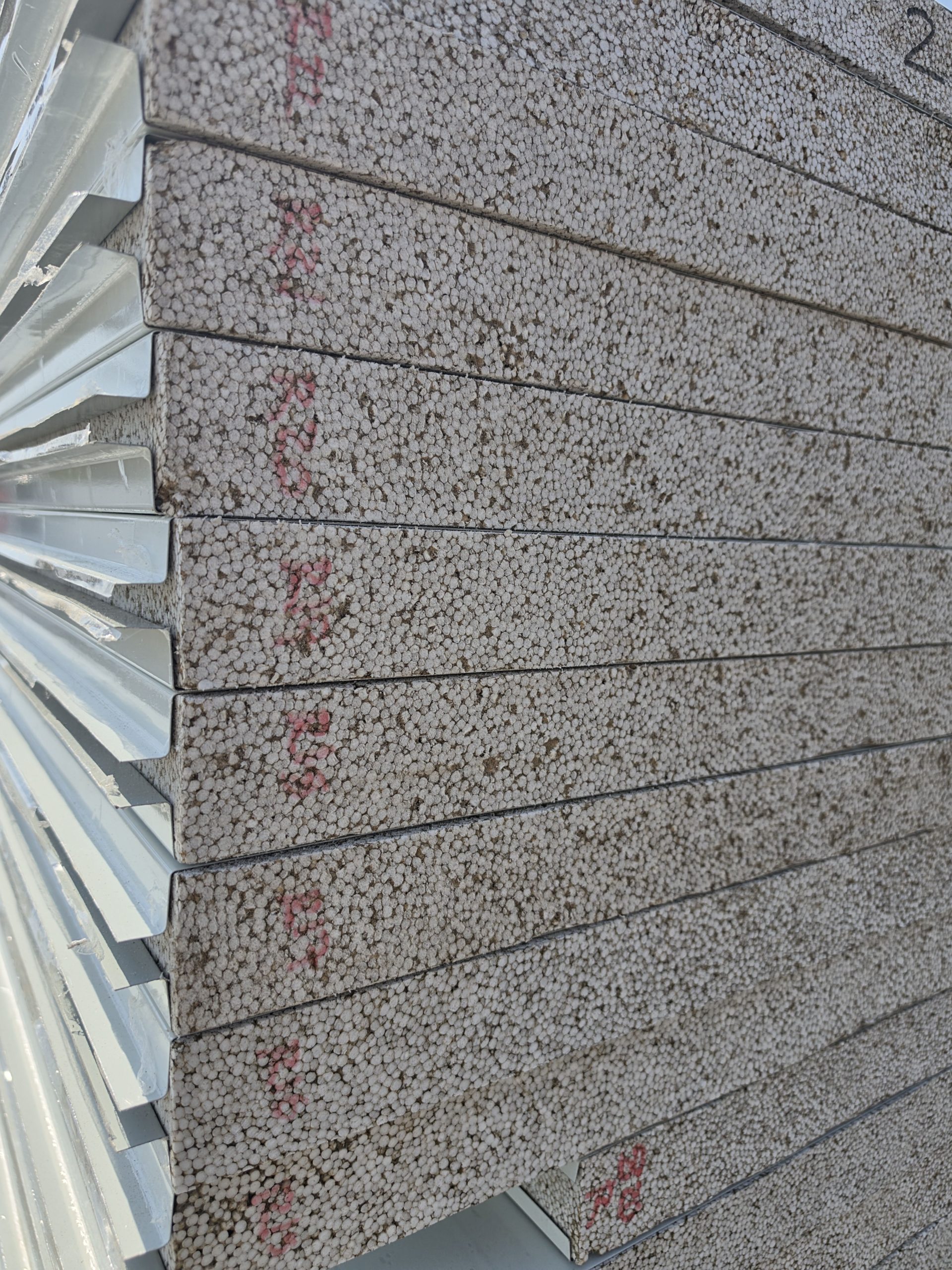

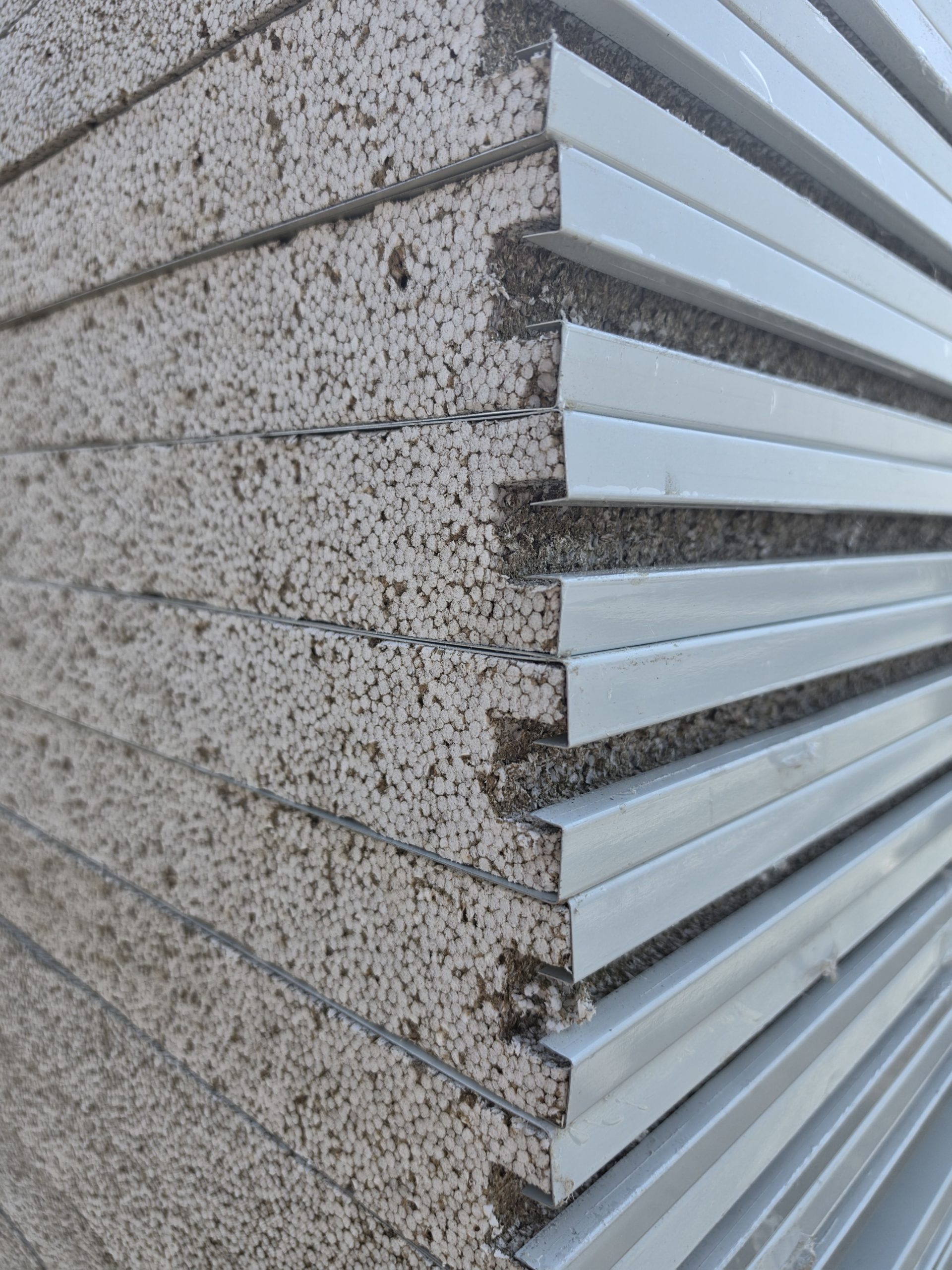

03 Frigipan Engineered EPS Polyphen panel Engineered EPS panel core Frigipan engineered insulated panels
Enhanced fire performance

Engineered EPS (Polyphen) Panels

Enhanced Insulation & Fire Performance

Frigipan Polyphen insulated panels offer a high-performance alternative to conventional EPS, combining excellent thermal insulation with enhanced fire performance.

The Polyphen core is designed to retain its form for longer when exposed to high temperatures, making it an excellent choice for applications where insulation and fire performance are important.

Key benefits
  • Enhanced fire performance
  • Excellent thermal insulation
  • Improved high-temperature stability
  • Cold rooms and freezer rooms
  • Suitable for insulated buildings
  • Various thicknesses and customised sizes
Technical Data Sheet ↓ Product Brochure ↓

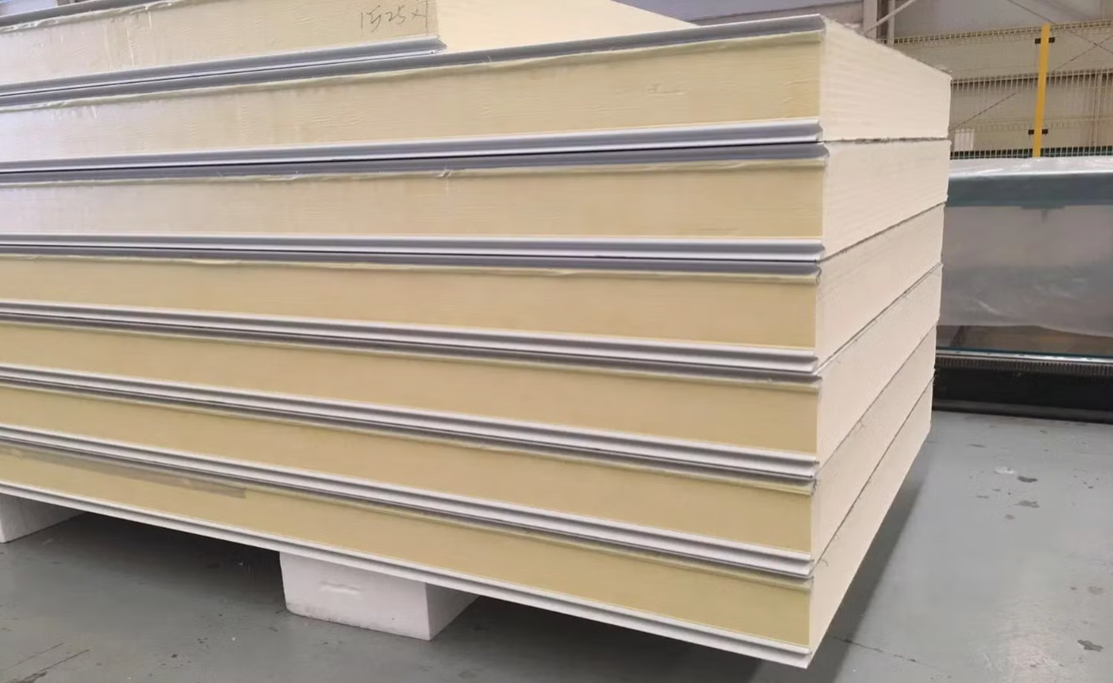

04 Frigipan PIC 32 polyurethane insulated panel
High thermal efficiency

PIC 32 Polyurethane Panels

High Insulation & Thermal Efficiency

Frigipan PIC insulated panels offer high-performance thermal insulation, combining excellent insulation properties with a strong, lightweight and durable construction.

Our PIC panels feature a laminated polyurethane core bonded to PPGL steel facings, making PIC an ideal choice for applications where insulation efficiency and temperature control are important.

Key benefits
  • Excellent thermal insulation
  • High thermal resistance
  • Lightweight and strong
  • Improved energy efficiency
  • Suitable for cold rooms
  • Freezer rooms and insulated buildings
Download Data Sheet ↓ Request a Quote →

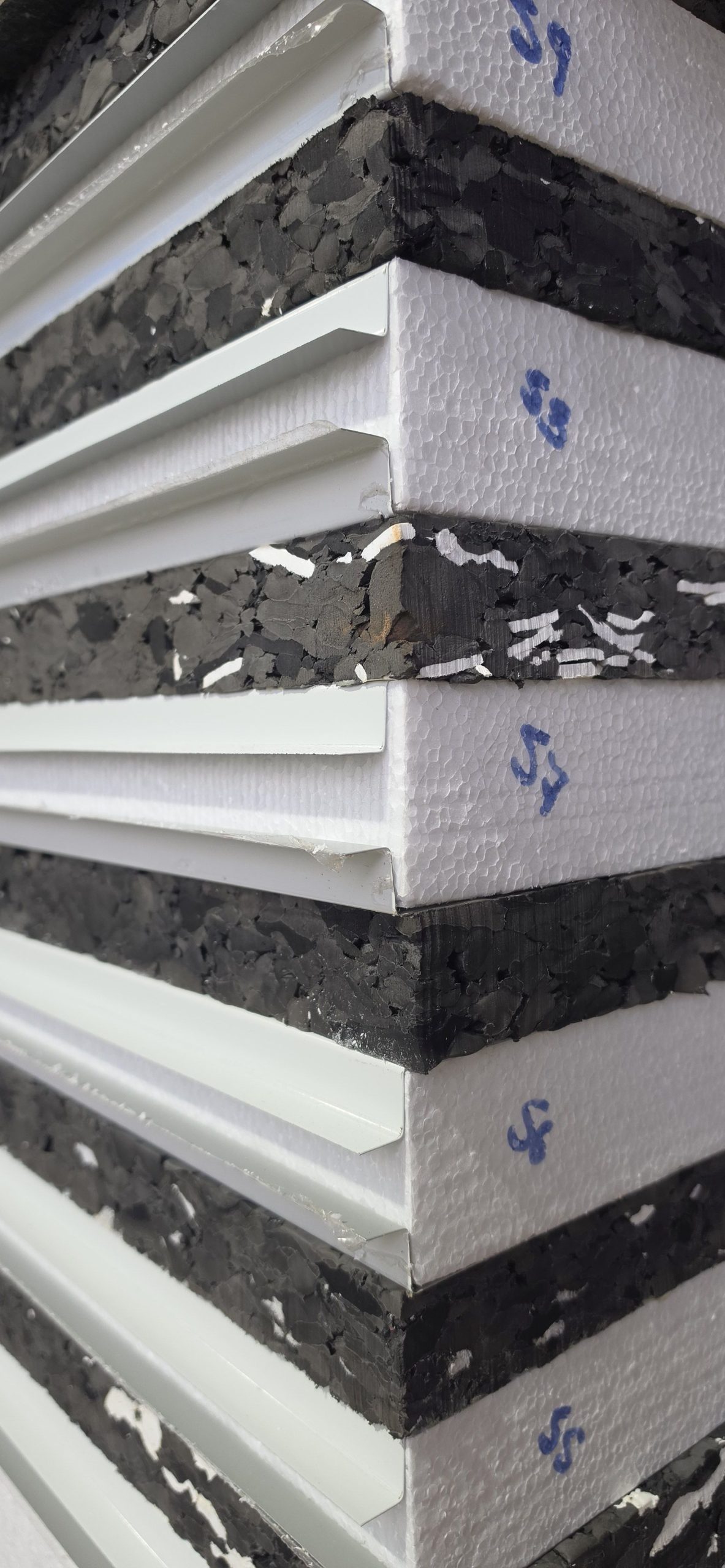

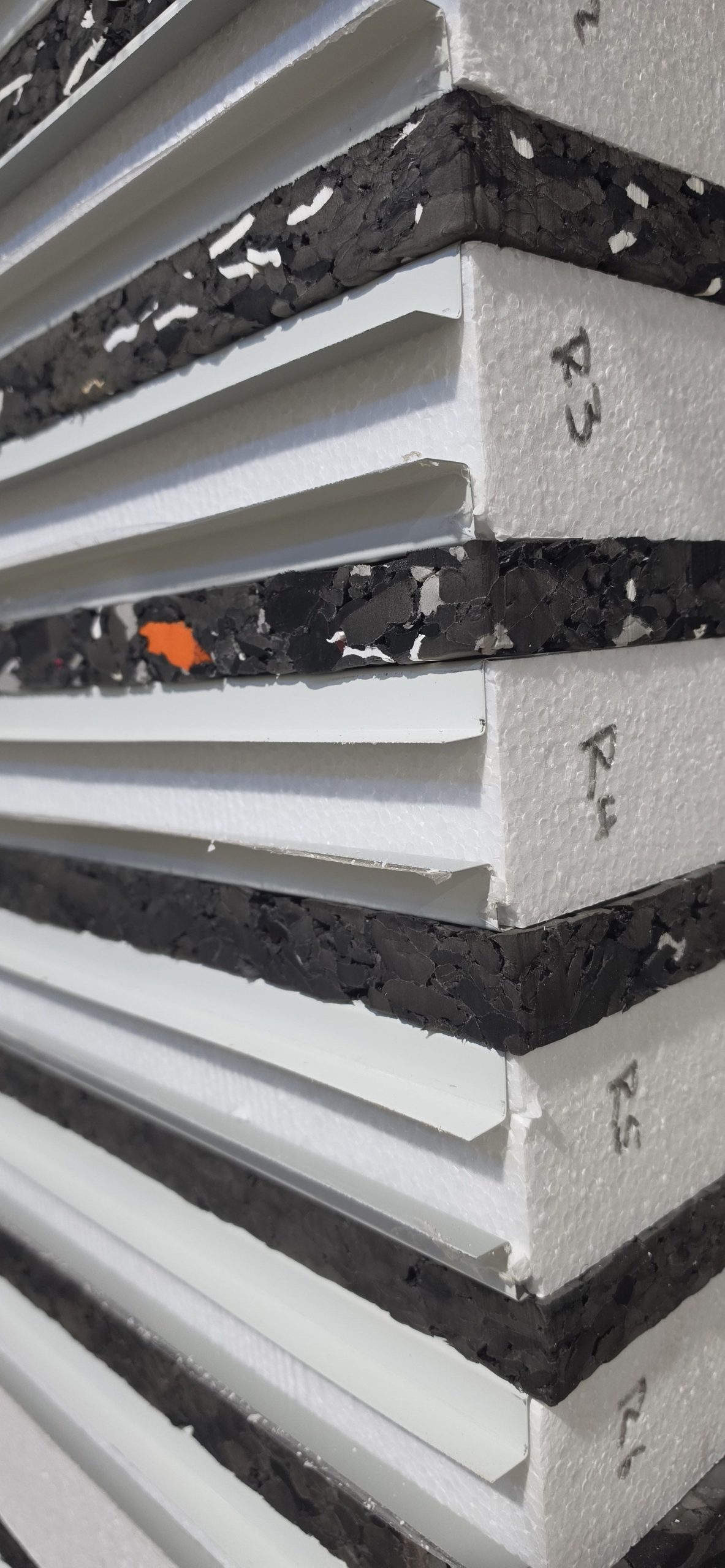

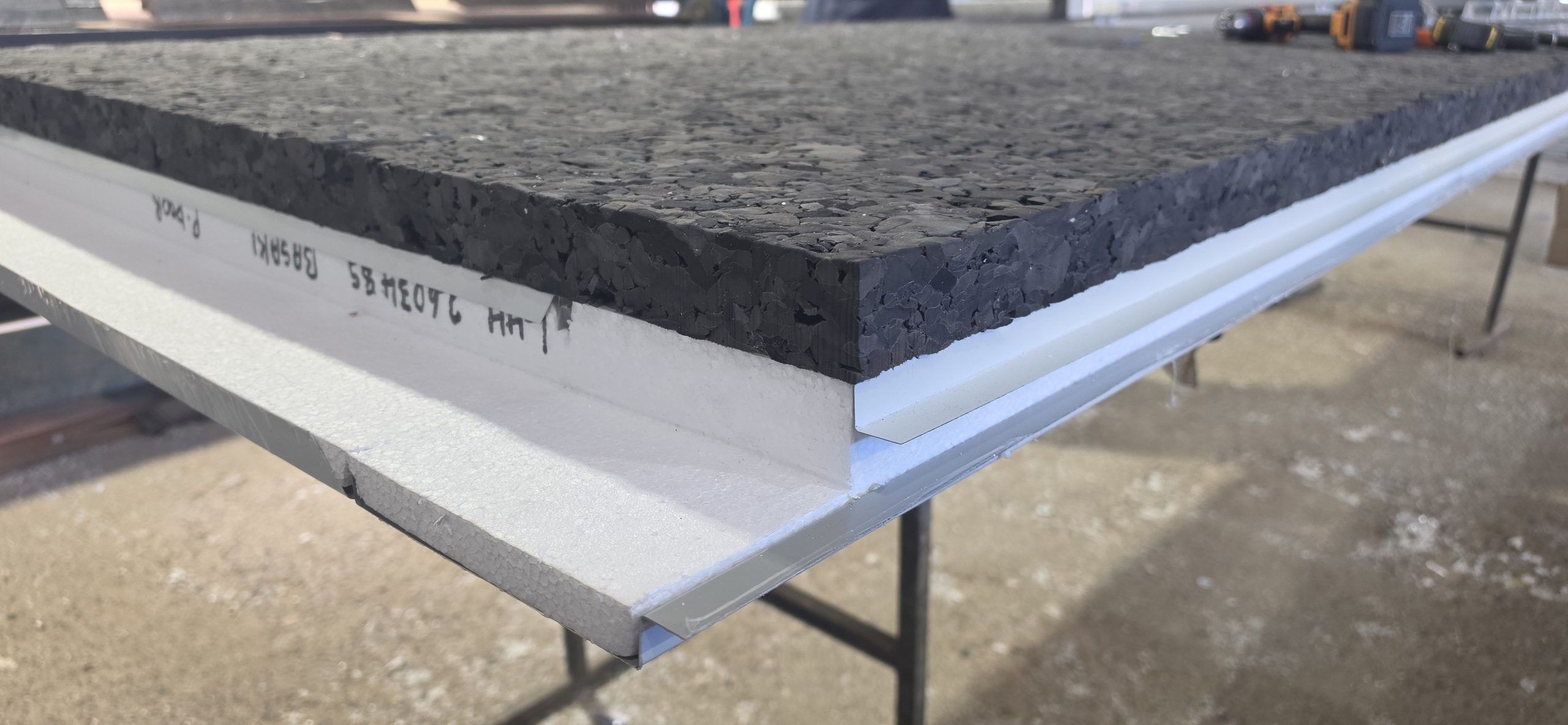

05 Frigipan XPE Chipfoam insulated panel XPE Chipfoam panel layers Multi-density XPE Chipfoam panel
Acoustic and vibration control

XPE Chipfoam Panels

Acoustic, Vibration & Insulation Performance

Frigipan XPE Chipfoam panels use a closed-cell polyethylene foam designed to provide lightweight insulation together with acoustic and vibration-control properties.

The multi-density chipfoam structure offers sound attenuation, vibration damping and resistance to moisture, making it suitable for industrial, automotive and specialised insulated applications.

Key benefits
  • Closed-cell polyethylene foam
  • Acoustic and vibration damping
  • Moisture resistant
  • Lightweight and flexible
  • Durable multi-density structure
  • Various thicknesses and customised sizes
Sound Mitigation Specification ↓ Contact Frigipan →

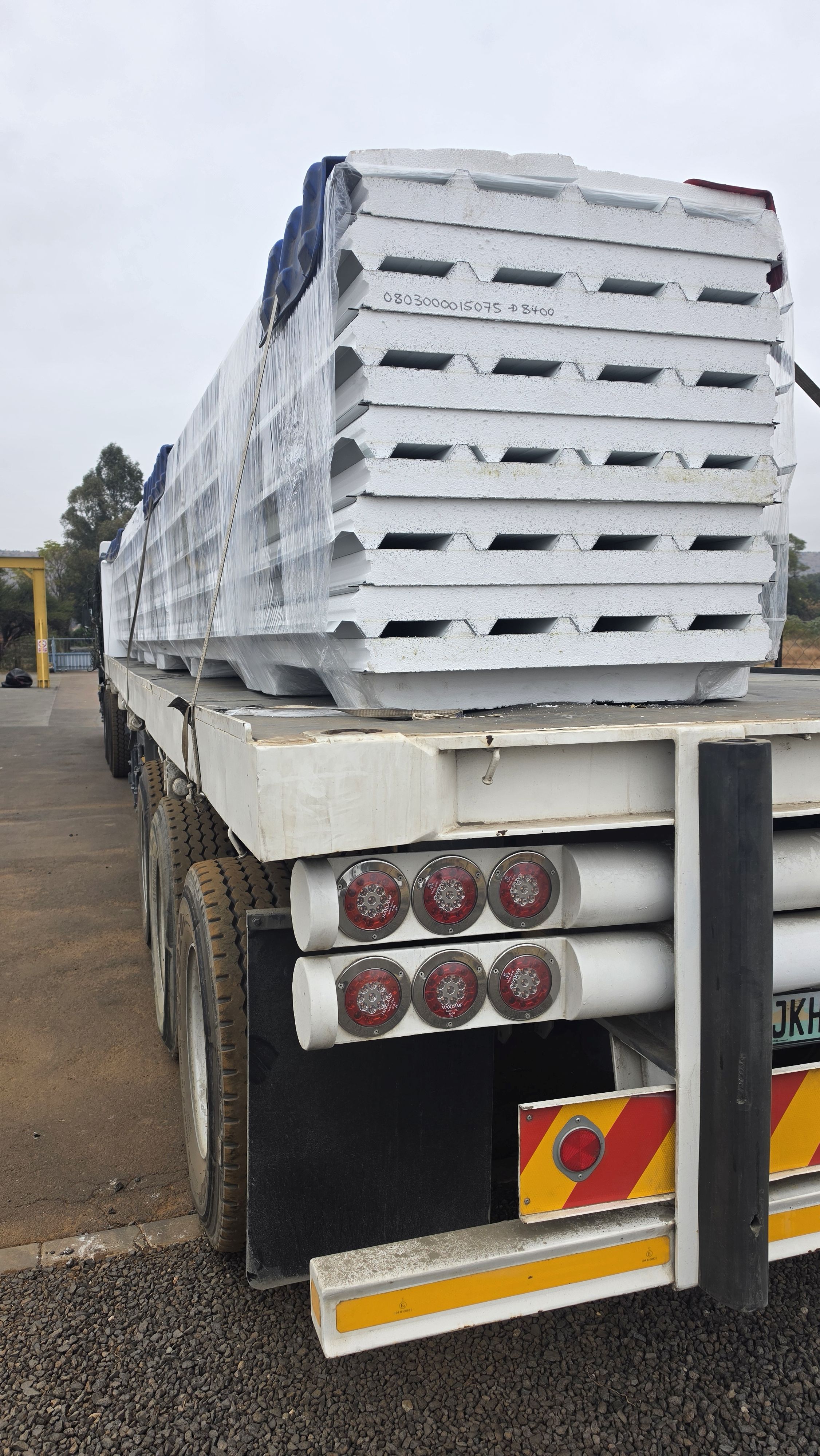

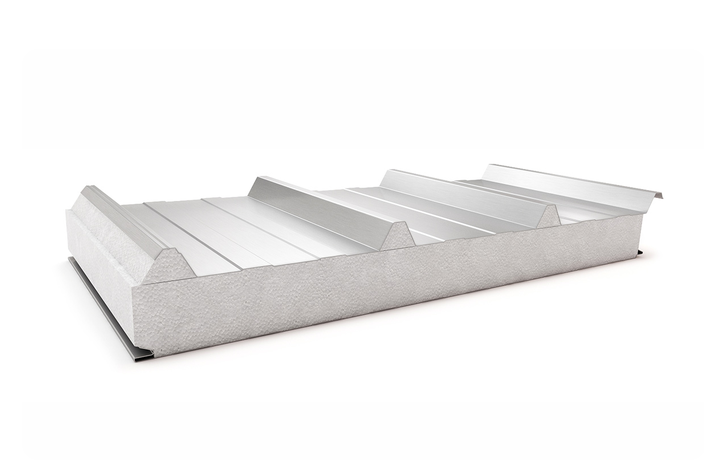

06 Frigipan insulated IBR roof panels ready for delivery Insulated IBR roof panel profile Frigipan IBR insulated roofing panel
Insulated roofing

Insulated IBR Roof Panels

Durable Roofing with Built-In Insulation

Frigipan insulated IBR roof panels combine a strong, weather-resistant IBR roof profile with an insulated core, providing an efficient roofing solution for industrial, commercial and agricultural buildings.

The integrated insulation helps improve thermal performance and comfort while reducing the need for separate insulation beneath the roof.

Key benefits
  • IBR profile strength and durability
  • Built-in thermal insulation
  • Excellent weather protection
  • Fast and efficient installation
  • Industrial, commercial and agricultural buildings
  • Various thicknesses and customised lengths
General Panel & IBR Specifications ↓ Request Specifications →
Technical specification

Built to the size and insulation level your project needs.

The current supplied panel specification lists a broad range of panel thicknesses, EPS densities and panel dimensions for cold-storage and building applications. Final dimensions and engineering requirements must be confirmed for each project.

40–250 mm insulated thickness range
12–30 kg/m³ listed EPS density range
1000 mm panel width listed in the current specification
1165 mm panel width listed in the current specification
12,000 mm maximum listed panel length
AZ150 Frost White coated cladding listed on current page
Frigipan insulated panels being handled in the factory

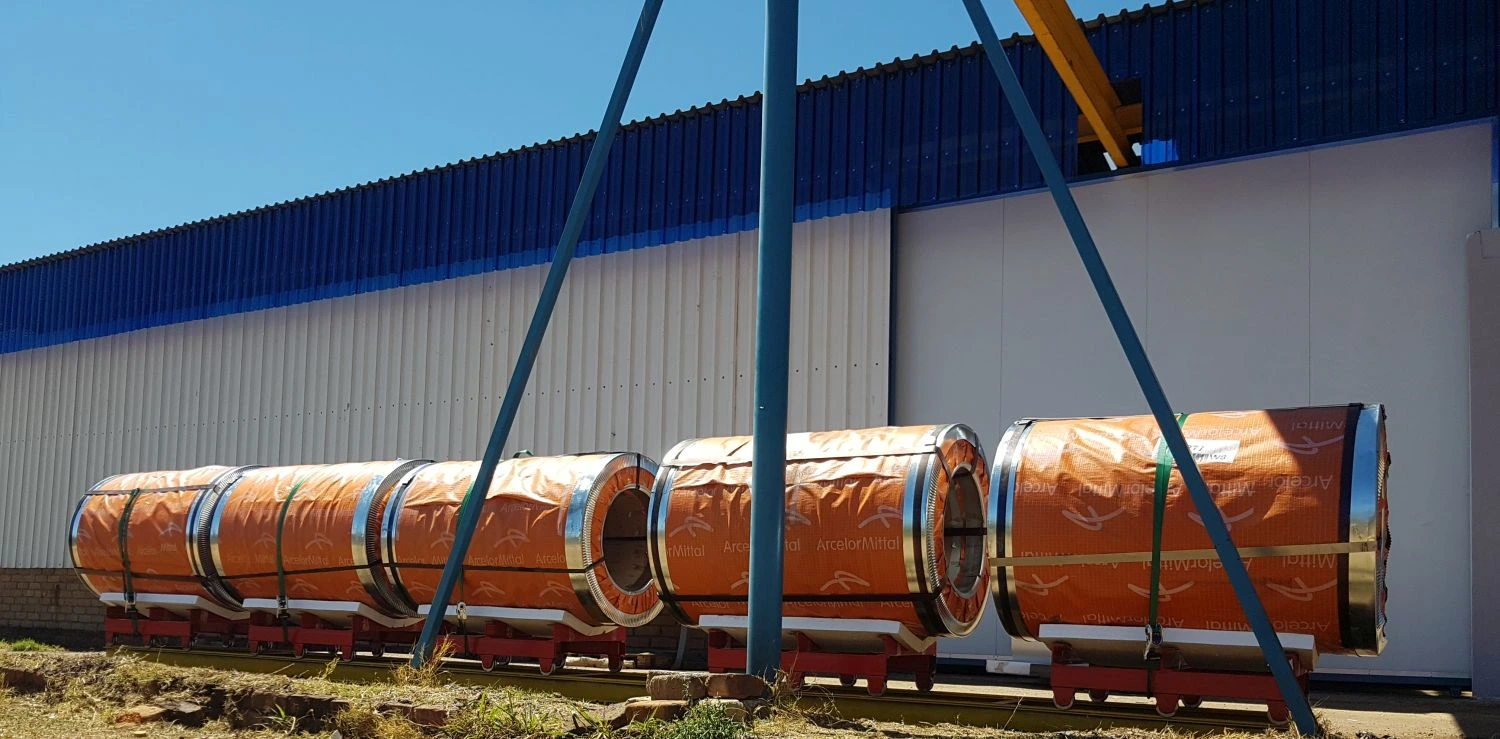

Insulation cladding coils at Frigipan

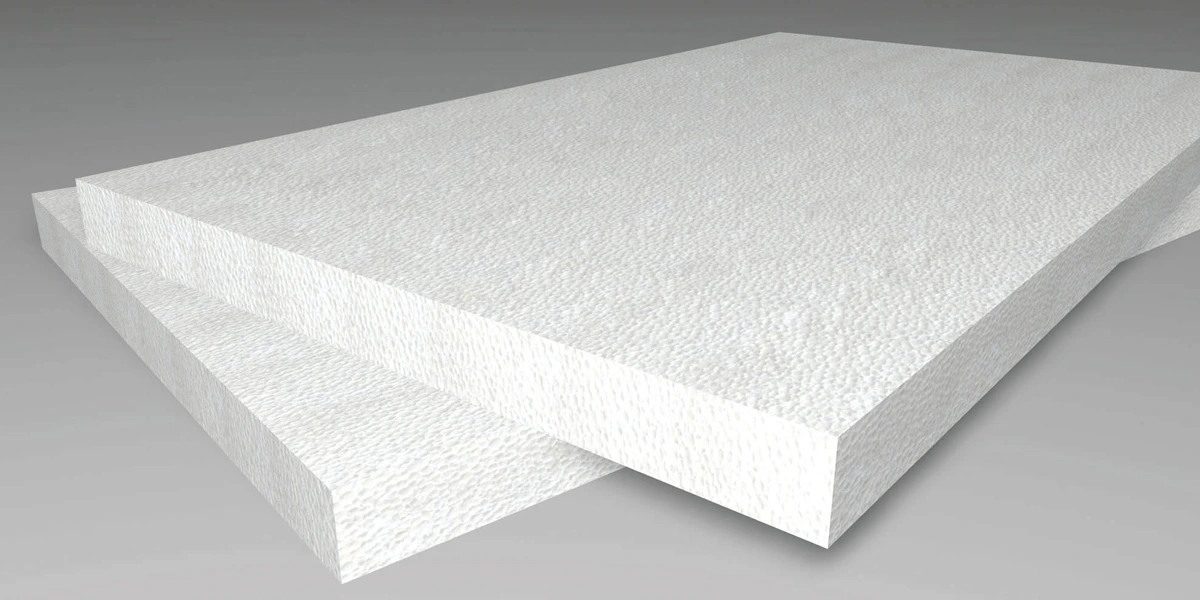

EPS polystyrene insulation core
Manufacturing tolerance

Clear dimensional tolerances.

The current Frigipan panel specification lists the following manufacturing tolerances.

Description Tolerance
Panel length under 3 m ± 3 mm
Panel length over 3 m and up to 8 m ± 5 mm
Panel length over 8 m and up to 12 m ± 7 mm
Panel width ± 2 mm
Panel thickness ± 2 mm
Why Frigipan panels

Practical performance from manufacture to installation.

Thermal efficiency

EPS-core insulated panels help reduce unwanted heat transfer in temperature-controlled spaces.

Hygienic surfaces

Clean coated finishes are well suited to cold rooms, food environments and commercial facilities.

Flexible design

Multiple thicknesses, densities, widths and joint systems allow the panel specification to suit the project.

Complete supply

Frigipan also supplies doors, hinges, latches, seals, heaters, coving, shelving and related cold-room hardware.

Frigipan insulated panel manufacturing facility
From panel specification to complete supply

Let Frigipan design your next insulated-panel project.

Cold room, freezer room, prefab building, partition wall or insulated enclosure? Send Frigipan your project requirements for panel sizing, doors and hardware.
